Plastic Cable Drag Chain
Created with Pixso.

Openable Type PA66 Flexible Cable Carrier CNC Cable Drag Chain Customizable

Openable Type PA66 Flexible Cable Carrier CNC Cable Drag Chain Customizable

Openable Type PA66 Flexible Cable Carrier CNC Cable Drag Chain Customizable

Brand Name: BNEE
Model Number: ZQ ZF
MOQ: 1
Price: 10$-60$
Payment Terms: T/T
Supply Ability: 200 metres per day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE IS09001
Application:
Cable Management
Type:
Drag Chain
Operating Speed:
High
Length:
Customizable
Material:
PA66
Color:
Black
Flexibility:
High
Maintenance:
Low
Load Capacity:
Medium
Packaging Details:
cardboard box
Highlight:

PA66 Flexible Cable Carrier

,

Openable Type CNC Cable Drag Chain

,

CNC Cable Drag Chain Customizable

Product Description
Plastic and Nylon Openable Type Protective Bridge Cable Drag Chain PA66 Wires Carrier Drag Chain Transmission
Product Specifications
Attribute Value
Material Steel & Nylon
Inner Height 07mm-80mm
Inner Width 07mm-300mm
Outer Height 10mm-119mm
Outer Width 10mm-364mm
Bending Radius 18mm-300mm
Product Overview

Nylon cable drag chains provide flexible, durable solutions for dynamic cable management in industrial applications. These protective carriers guide and safeguard cables and hoses while maintaining optimal performance in demanding environments.

Key Features
  • Constructed from high-quality nylon for strength and flexibility
  • Excellent wear and abrasion resistance for long service life
  • Chemical resistant for use in various industrial environments
  • Noise-reducing design for quieter operation
  • Lightweight yet durable construction
  • Corrosion-resistant for humid or wet conditions
Technical Specifications
Type Bending Radius (mm) Inner Height (mm) Inner Width (mm) Outer Height (mm) Outer Width (mm)
ZQ3575 75-300 35 75 58 102
ZQ35100 75-300 35 100 58 127
ZQ35125 75-300 35 125 58 152
ZQ35150 75-300 35 150 58 177
ZQ35200 75-300 35 200 58 227
ZQ35250 75-300 35 250 58 277
ZQ35300 75-300 35 300 58 327
ZQ35350 75-300 35 350 58 377
ZQ35400 75-300 35 400 58 427
Applications
  • Automotive assembly lines and robotic systems
  • CNC machines and industrial machine tools
  • Medical equipment and diagnostic devices
  • Material handling and conveyor systems
  • Office and home electronics cable management
Product Images

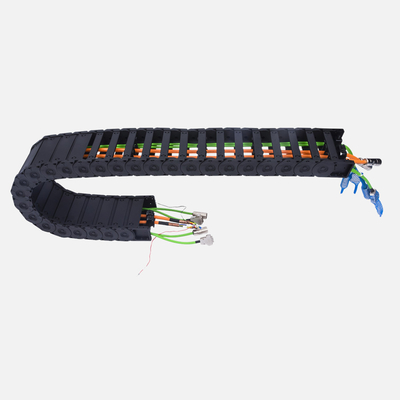

Openable Type PA66 Flexible Cable Carrier CNC Cable Drag Chain Customizable 0 Openable Type PA66 Flexible Cable Carrier CNC Cable Drag Chain Customizable 1 Openable Type PA66 Flexible Cable Carrier CNC Cable Drag Chain Customizable 2 Openable Type PA66 Flexible Cable Carrier CNC Cable Drag Chain Customizable 3
