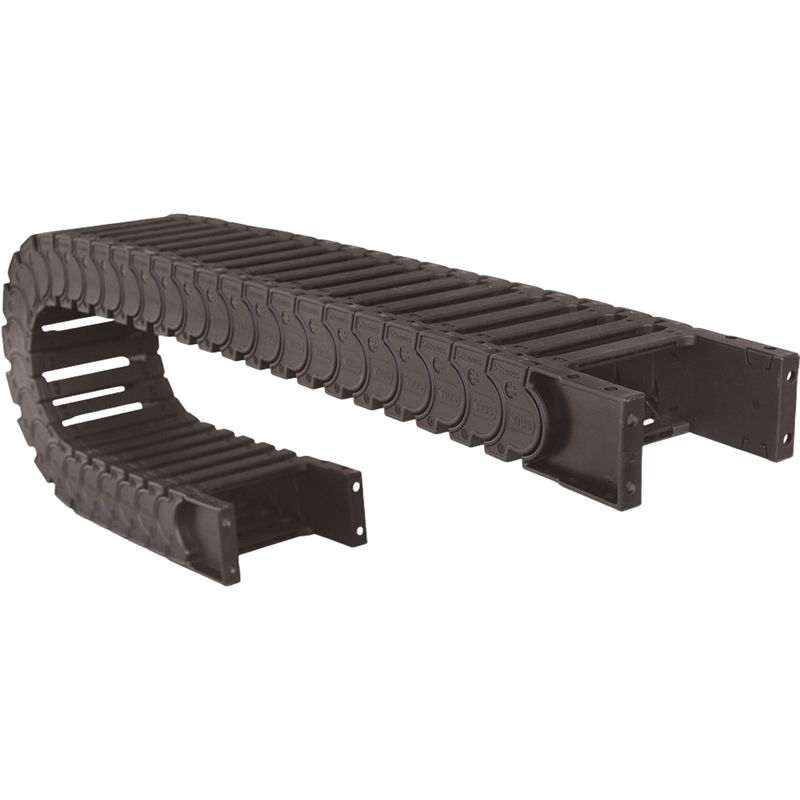

High Strength Plastic Cable Drag Chain Medium Capacity For Industrial Automation

High Strength Plastic Cable Drag Chain Medium Capacity For Industrial Automation

Brand Name: BNEE
MOQ: 1
Price: Negotiable
Payment Terms: L/C,D/A,T/T,Western Union
Detail Information
Place of Origin:
Cangzhou,Hebei
Structure:
Bridge Type
Load Capacity:
Medium
Temperature Range:
40C-130C
Color:
Black
Height:
10 Mm
Material:
Plastic
Working Temperature:
- 40°C~ + 110C
Outer Width:
10mm-364mm
Packaging Details:
Standard Export Packing
Highlight:

Medium Capacity Cable Drag Chain

,

Drag Chain For Industrial Automation

,

High Strength Plastic Cable Drag Chain

Product Description
High Strength Plastic Cable Drag Chain Medium Capacity For Industrial Automation
Product Specifications
Attribute Value
Structure Bridge Type
Load Capacity Medium
Temperature Range 40°C-130°C
Color Black
Height 10 mm
Material Plastic
Working Temperature -40°C ~ +110°C
Outer Width 10mm-364mm
Product Description

Technical Specifications: 35mm × 125mm Series

Optimized for High-Density Cable Routing in Low-Clearance Environments

1. Dimensional Engineering

  • Low-Profile Height (10mm): Designed specifically for machinery with restricted vertical clearance, ensuring that the energy chain can operate smoothly within compact internal housing or under-slung mounting positions.

  • Spacious Internal Aperture (35mm × 125mm): The wide internal diameter allows for the simultaneous routing of multiple signal cables, high-voltage power lines, and pneumatic hoses without the risk of internal friction or "corkscrewing."

  • Standard 1-Meter Length: Each unit comes in a ready-to-install 1-meter segment, featuring a modular snap-fit design that allows for rapid extension or shortening to match specific machine bed lengths.

2. High-Grade Material Science

  • Reinforced Nylon Composite: Constructed from premium, wear-resistant black nylon. This material provides a superior strength-to-weight ratio, ensuring the chain remains rigid over long horizontal spans while maintaining enough flexibility for millions of high-speed cycles.

  • Corrosion & Chemical Resistance: The high-quality polymer is resistant to common industrial lubricants, cutting fluids (coolants), and semi-acidic environments, making it ideal for the "wet" zones of CNC milling and lathing centers.

3. Professional Aesthetics & Performance

  • Sleek Stealth Finish: The matte black finish provides a professional, "factory-integrated" look that conceals grease and industrial dust, maintaining the clean aesthetic of high-end equipment.

  • Smooth Kinematics: Engineered with precision-molded pivot pins, the chain operates with minimal acoustic noise (below 70dB), reducing mechanical vibration that could otherwise affect the precision of sensitive laser or plasma cutting heads.

Key Features
  • Product Name: Cable Drag Chain
  • Temperature Range: 40°C-130°C
  • Load Capacity: Medium
  • Structure: Bridge Type
  • Application: Industrial Machinery
  • Outer Width: 10mm-364mm
Technical Parameters
Parameter Value
Working Temperature -40°C ~ +110°C
Temperature Range 40°C-130°C
Outer Width 10mm-364mm
Mode TLG 100
Inner Diameter 35mm×125mm
Load Capacity Medium
Length 1 Meter
Function Machine Tool Accessories
Material Plastic
Structure Bridge Type
Applications

High-Performance 10mm Series Cable Drag Chain

Engineered for Precision Motion Control & Heavy-Duty Cable Protection

Our Black Industrial Cable Drag Chain is a premium-grade motion control accessory designed to organize, guide, and shield cables and hoses in high-speed automated environments. Engineered with a compact 10mm profile, this carrier is the ideal solution for modern CNC machinery, robotic integration, and precision manufacturing where space is at a premium and reliability is non-negotiable.



1. Superior Thermal Resilience & Environmental Stability

Engineered for global industrial climates, this cable track maintains peak structural integrity across an extreme temperature spectrum:

  • Operating Range: -40°C to +110°C (-40°F to +230°F).

  • Cold-Weather Performance: Remains high-impact resistant at sub-zero temperatures, preventing brittleness and snapping in cold-storage or outdoor applications.

  • High-Heat Stability: Maintains rigid geometry and tensile strength in high-heat environments, such as foundries or high-speed machining centers.

2. Medium-Load Structural Integrity

  • Reinforced Composite Construction: Manufactured from high-tensile, wear-resistant polymer (PA66), offering a Medium Load Capacity that perfectly balances lightweight agility with heavy-duty cable support.

  • Optimized 10mm Clearance: The slim 10mm height is specifically designed for low-clearance installations, providing a smooth, frictionless path for cables to move without obstruction or internal abrasion.

3. Versatile Industrial Applications

Our cable carriers are the "gold standard" for a wide range of dynamic automated systems:

  • CNC & Precision Machining: Protects delicate signal encoders and high-pressure hydraulic lines from swarf, metal chips, and coolant spray.

  • Robotic Articulation: Provides a reliable "dress pack" solution for robotic arms, ensuring tangle-free movement through millions of cycles.

  • Material Handling & Logistics: Ideal for high-speed sorting systems, automated packing lines, and vertical lifts where cable management is critical to preventing downtime.

Technical Specifications Matrix

Feature Technical Specification Business Value
Height 10 mm (Low Profile) Fits in compact mechanical housings
Inner Diameter 35mm × 125mm Ample space for multi-cable routing
Material High-Grade Reinforced Nylon Long service life & corrosion resistance
Temperature -40°C to +110°C Global climate compatibility
Load Rating Medium Duty Optimal for high-speed automation
Color Industrial Stealth Black Professional, integrated machine aesthetic

Why Choose Our Cable Management Solutions?

  • Extended Service Life: Reduces mechanical stress on cables, extending their lifespan by up to 300%.

  • Zero Downtime Architecture: Prevents cable entanglement and "corkscrewing," which are primary causes of electrical failure.

  • Modular Flexibility: Easy-to-snap links allow for rapid length adjustment (Standard 1m segments) to fit any machine bed length.
