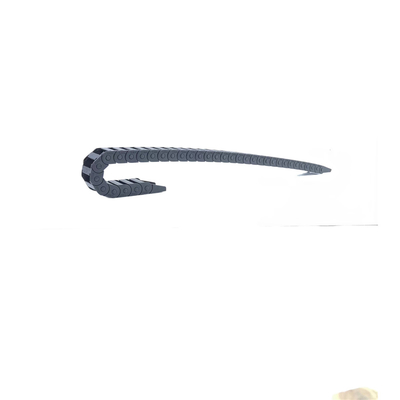

Fully Enclosed Bridge Type Cnc Drag Chain Flexible Cable Carrier Black Color

CNC Machine Steel & Aluminum Brand | Fully Enclosed Bridge Type Drag Chain

As a professional manufacturer of high-performance cable management systems, we provide heavy-duty bridge-type drag chains engineered for precision CNC machinery and demanding industrial automation. This technical expansion serves as a Strategic Selection Matrix, helping procurement officers and engineers optimize system reliability based on mechanical load and environmental stressors.

1. Quick Technical Specifications (B2B Reference)

• Material Options: Reinforced Nylon (PA66), Industrial Steel, or Aluminum Alloy.

• Design Architecture: Fully Enclosed (Tube) / Bridge (Open) Design.

• Operating Temperature: -40°C to +130°C (High-temp customized series available).

• Maximum Velocity: Up to 5m/s (Reinforced Nylon series).

• Service Life: Tested for over 10 million reciprocating cycles.

• Compliance: CE, RoHS, and ISO 9001 Certified.

2. Technical Classifications: Engineering for Environment

Selecting the correct carrier requires a calculated balance between tensile strength and chemical resistance. Our portfolio is categorized into three primary performance tiers:

• Industrial Steel & Aluminum Series: Engineered for extreme-duty environments (foundries, steel mills, and heavy mining). These chains offer unmatched structural integrity and resistance to red-hot metal chips.

• High-Grade Polymer (Plastic) Series: Optimized for high-speed, low-weight applications. These carriers are naturally corrosion-resistant and ideal for clean-room or wash-down environments.

• Reinforced Nylon (Fiberglass-Enhanced): The "Gold Standard" for modern robotics. Offers a superior strength-to-weight ratio and excellent wear resistance for high-duty cycles.

3. Design Architecture: Bridge vs. Fully Enclosed

• Bridge (Open) Design: Features stay-bars for maximum ventilation. This prevents heat buildup in high-voltage power cables and allows for rapid visual inspection of cable jackets.

• Fully Enclosed (Tube) Design: Provides a 360-degree protective seal. Mission-critical for environments with high dust, metal shavings (swarf), or cutting-fluid spray, ensuring sensitive data lines remain uncontaminated.

4. Core Functional Purposes: Maximizing System MTBF

Our drag chains are precision components designed to maximize your Mean Time Between Failures (MTBF):

• Abrasion Resistance: Absorbs the friction of constant movement, significantly extending the service life of expensive internal hoses.

• Systematized Geometry: Eliminates "corkscrewing" (internal conductor twisting) by maintaining the precise minimum bend radius.

• Acoustic Management: Advanced link-pin designs maintain an acoustic profile below 70dB, crucial for medical and lab-integrated environments.

5. Technical Selection Matrix (B2B Quick-Guide)

• High Speed (>5m/s): Select Reinforced Nylon with integrated dampeners.

• Hot Chips/Sparks: Select Fully Enclosed Steel or high-temp polymers.

• Long Travel (>50m): Select chains with integrated sliding shoes to prevent sagging.

• Chemical Exposure: Select Acid-resistant/FDA-compliant plastics.

Conclusion & Engineering Support

Cable drag chains are the backbone of reliable industrial motion. Whether you are upgrading a CNC center or designing a new automation line, choosing the right architecture reduces downtime and maintenance costs.
