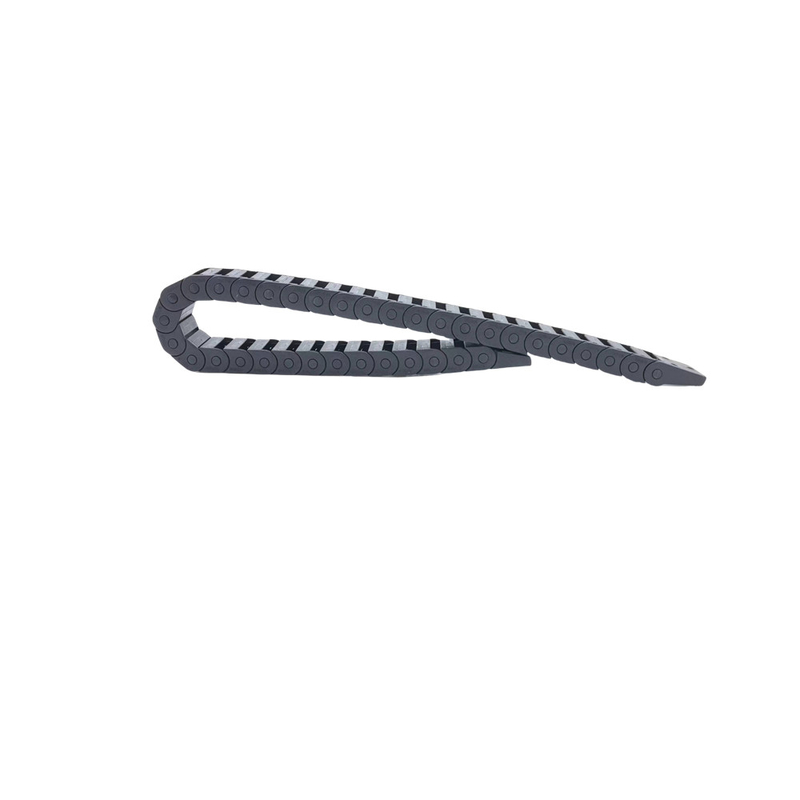

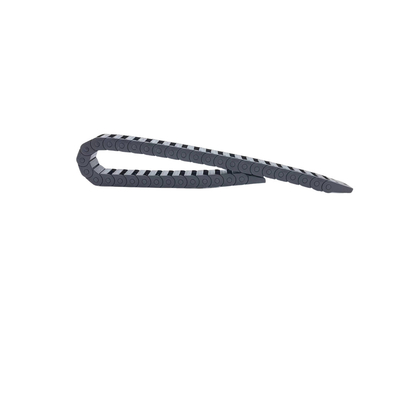

PA66 Engineered Nylon Cable Drag Chains: The Industry Standard for CNC & Automation

Beyond Protection: High-Performance Cable Management

In high-speed CNC machining and robotic articulation, the cable carrier is the backbone of system reliability. Our PA66 (Polyamide 66) drag chains are not merely plastic tracks; they are precision-engineered motion control components designed to withstand high-G acceleration while protecting your machine's "nervous system" from friction, fatigue, and environmental failure.

[ I. Material Science: Why PA66? ]

The difference between standard plastic and industrial-grade nylon.

High-Tensile Rigidity: PA66 offers superior strength-to-weight ratios, allowing for longer unsupported spans without sagging.

Thermal Stability: Maintains structural integrity in environments from -40°C to +125°C.

Self-Lubricating Links: The molecular structure of our nylon reduces pivot-point friction, ensuring quiet operation and a service life exceeding 5 million cycles.

[ II. Strategic Classification & Selection ]

Use the following matrix to align the carrier design with your specific production stressors.

1. Structural Configuration

• Bridge Type (Open Design): * Best for: General automation & long-travel distances.

  • Value: Rapid heat dissipation and "instant-access" cable inspection.

• Fully Enclosed (Tube Design): * Best for: Woodworking, foundries, and composite machining.

  • Value: 360° armor against hot metal chips, fine dust, and coolant spray.

2. Load Optimization

• Light-Duty Series: Optimized for high-speed, low-mass applications like 3D printing and laboratory pick-and-place.

• Heavy-Duty Series: Reinforced side-links and thicker crossbars to support high-pressure hydraulic hoses and heavy power cables.

[ III. Sector-Specific Performance Benchmarks ]

[ IV. Operational Impact & Business ROI ]

• Minimizing "Corkscrewing": Our engineered bend-radius control prevents internal copper fracturing in expensive shielded cables, reducing cable replacement costs by up to 60%.

• Safety Compliance: Eliminates trip hazards and ensures that your facility meets international OSHA and CE machinery safety standards.

• Reduced MTTR (Mean Time To Repair): Snap-open crossbars mean your maintenance team can replace a damaged cable in minutes, not hours, keeping your spindles turning.

[ V. Technical Selection Guidance ]

For an accurate quote, our engineering team recommends providing:

1. Inner Height/Width: (Based on your largest cable diameter + 10% clearance).

2. Bending Radius (R): (Based on your cable manufacturer's minimum specification).

3. Travel Distance: (To determine if support rollers or guide troughs are required).
