Home Products

Machine Bellow Cover

Industrial CNC Bellows Slide Way Covers Accordion Bellow Covers For Linear Motion

Brand Name:	BNEE
Model Number:	Customised as per drawing
MOQ:	1
Price:	20$-60$
Payment Terms:	T/T
Supply Ability:	100 pieces per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

IS09000 CE

Materials:

PVC

Colour:

Black

Height:

Customisation

Width:

Customisation

Maximum Stretch:

Customisation

Minimum Compression:

Customisation

Packaging Details:

cardboard box

Highlight:

CNC accordion bellow covers

Linear Motion accordion bellows cover

Linear Motion bellow dust cover

Product Description

CNC Bellows Slide Way Covers Accordion Bellow Covers For Linear Motion

Product Specifications

Attribute	Value
Materials	PVC
Color	Black
Height	Customizable
Width	Customizable
Maximum Stretch	Customizable
Minimum Compression	Customizable

Product Overview

Our CNC Bellows Slide Way Covers provide essential protection for linear motion systems in industrial machinery. These accordion-style bellows maintain precision and reliability by shielding guide rails from contaminants while allowing smooth mechanical movement.

Key Applications

Machine Tools: Protection for CNC machines, milling machines, and laser engravers against dust, chips, and coolant
Automotive Equipment: Shields guide rails in automotive production and assembly processes
Aerospace & Defense: Ensures consistent performance in high-precision equipment
Medical Equipment: Prevents contamination in imaging and surgical devices
Industrial Automation: Maintains integrity of linear motion components in robotic systems

Performance Characteristics

Durable Construction: Made from high-quality PVC for long-term reliability
Effective Sealing: Prevents contaminant ingress to reduce maintenance needs
Flexible Design: Accommodates slight misalignments and vibrations
Easy Installation: Simple mounting for quick implementation
Customizable: Available in various sizes and configurations to match specific requirements

Technical Dimensions

Lmax/Lmin/H	10	15	20	25	30	35	40	45	50	55
100	53	39	34	32	30	28	27	26	26	25
150	69	49	41	38	34	32	30	29	28	27
200	85	58	47	43	39	36	34	32	31	30
250	102	68	54	49	43	39	37	35	33	32
300	118	77	61	55	48	43	40	38	36	34
350	134	87	67	60	52	47	43	40	38	36
400	150	96	74	66	57	51	46	43	41	39
450	166	106	81	72	61	55	50	46	43	41
500	183	115	87	77	66	58	53	49	46	43

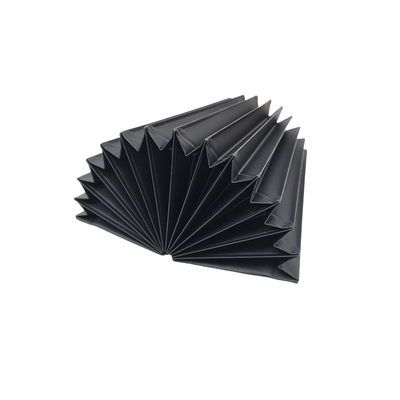

Product Images

These guide rail protective covers are essential components for maintaining the reliability and precision of linear motion systems. Their customizable design and durable construction make them ideal for various industrial applications where accurate mechanical movement is critical.
