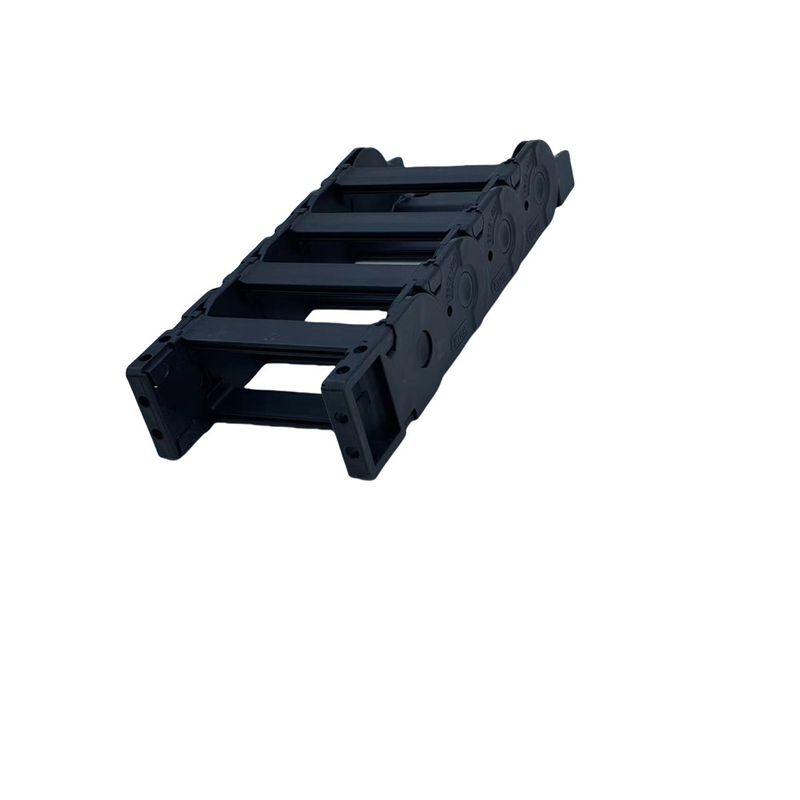

High-Precision Cable Carriers for CNC Machine Tools

Engineered Drag Chain Systems for Dynamic Power & Data Protection

In high-speed CNC machining, the drag chain is the "backbone" that ensures the safe delivery of power and signals. Our Industrial Cable Carrier Systems are specifically designed to manage the rigorous demands of multi-axis motion, protecting your machine's cables and hoses from high-G acceleration, corrosive coolants, and sharp swarf.

By eliminating cable fatigue and entanglement, our carriers maximize Operational Uptime and maintain the Micrometric Precision of your equipment.

[ I. Strategic Engineering Value ]

Designed to lower Total Cost of Ownership (TCO) and prevent unscheduled downtime.

• Superior Mechanical Shielding: Provides a high-impact barrier against mechanical stress, abrasion, and flying debris (swarf/chips) common in milling and lathing environments.

• Precision-Guided Motion: Prevents "corkscrewing" and entanglement of loose cables, ensuring a fixed, engineered bending radius that extends cable life by up to 300%.

• Extreme Environmental Resistance: Engineered to withstand caustic cutting oils, high-pressure coolant wash-downs, and temperature fluctuations from -40°C to +125°C.

• Enhanced Facility Safety: Encloses live wires and hydraulic lines to eliminate tripping hazards and accidental contact, ensuring full compliance with OSHA and CE safety standards.

• Maintenance-Optimized Design: Features a modular, snap-open architecture that allows technicians to inspect or replace cables in minutes, drastically reducing Mean Time to Repair (MTTR).

[ II. Cross-Sector Application Matrix ]

[ III. Technical Specifications & ROI ]

Material Integrity: Manufactured from high-tensile, flame-retardant PA66 Reinforced Nylon or 304/316 Stainless Steel.

Dynamic Loading: Optimized for travel speeds up to 5m/s and acceleration up to 40m/s².

Operational Savings: By preventing internal cable fracturing, our carriers protect your most expensive electronic investments—the high-flex data and power cables.

[ IV. Selection Checklist for Engineers ]

To ensure a 100% fit for your HMC, VMC, or Lathe, please specify:

1. Internal Clearance (H x W): Based on your cable bundle diameter + 10%.

2. Bending Radius (R): To match your cable's minimum flexible limit.

3. Mounting Brackets: Pivot or fixed end-connector requirements.
