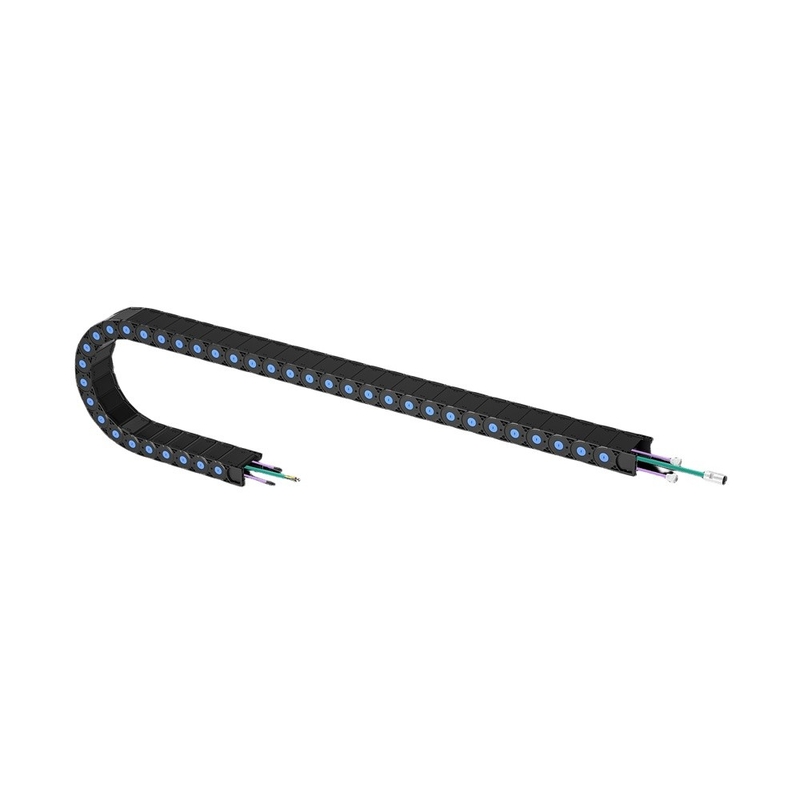

Flexible Protective Nylon Cable Drag Chain CNC Machine Cable Carrier Track Enclosed

Flexible High-Performance Cable Carrier Systems

The Engineering Standard for Dynamic Power and Data Protection in Industry 4.0

1. The Critical Role of Cable Drag Chains (Energy Chains)

In modern automated environments, cables and hoses are the "nervous system" of the machinery. Our reinforced polymer and steel-hybrid drag chains provide a structured, high-durability conduit that ensures these critical components perform without failure under high-cycle stress.

2. Strategic Operational Advantages

• Precision-Guided Motion Management: By providing a defined, constrained path of travel, our energy chains eliminate the risks of cable entanglement, "bird-nesting," or snagging. This is essential for high-speed CNC axes and robotic multi-joint movements where loose cables could lead to catastrophic mechanical interference.

• Shielding Against Mechanical & Environmental Stress: The rugged outer frame acts as a primary defense against abrasion, high-velocity metal chips (swarf), and physical impacts. Whether in a machine shop or a construction site, the internal cables remain isolated from the external "wear zone."

• Uptime & Reliability Engineering: Our carriers protect internal insulation from contaminants such as dust, cutting fluids, and extreme thermal fluctuations. This prevents insulation breakdown and signal interference, ensuring the long-term electrical integrity of your control systems.

• Streamlined Maintenance & Inspection: Organized cable routing allows for "at-a-glance" visual inspections. Should a cable require replacement, our modular "pop-open" crossbar design allows for rapid access without the need to disconnect the entire system, drastically reducing Mean Time To Repair (MTTR).

• Enhanced Workplace Safety Standards: By enclosing high-voltage power lines and pressurized hydraulic hoses, the system eliminates tripping hazards and protects personnel from accidental contact with live wires or high-pressure leaks.

3. Diverse Sector Applications & Purpose

Our drag chain solutions are engineered to meet the unique compliance and durability standards of five core global industries:

• High-Precision Manufacturing (CNC & Robotics): Protects the delicate fiber-optic and encoder cables used in automotive assembly and high-speed milling, where signal purity is critical to maintaining micron-level tolerances.

• Heavy Industrial & Resource Extraction: In mining, tunneling, and heavy construction, our chains are built with reinforced, impact-resistant materials to shield against rock debris, heavy vibration, and massive mechanical loads.

• Medical, Laboratory & Cleanroom Environments: For MRI scanners, automated pharmacy dispensers, and lab diagnostics, we provide specialized low-friction, "non-sloughing" materials that prevent particulate contamination and operate with near-silent acoustics.

• Automated Material Handling & Logistics: In high-speed sorting centers and massive warehouse conveyor systems, our energy chains ensure the continuous, 24/7 delivery of power to mobile shuttles and vertical lifts.

• Outdoor & Agricultural Infrastructure: Engineered with UV-stabilized compounds and weather-resistant joints to protect irrigation systems and harvesting machinery from exposure to rain, sun, and abrasive soil.

Conclusion: Cable drag chains are a vital component in the infrastructure of industrial machinery, offering protection, organization, and enhanced safety for cable management. Their usage is tailored to the specific needs of various industries, ensuring that cables remain in optimal condition and contribute to the efficient and reliable operation of machinery. As industrial technology continues to evolve, the role of cable drag chains in safeguarding this technology will be ever more crucial.

Recommendations:

• Regular inspection and maintenance of cable drag chains should be integrated into standard operating procedures to prolong their service life and ensure ongoing protection of cables.
• Selection of the appropriate drag chain material and design should be based on the specific environmental conditions and operational requirements of the machinery involved.
• Customization of drag chains should be considered for specialized applications to achieve optimal performance and fit.
