Nylon Cable Drag Chain
Created with Pixso.

High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width

High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width

High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width

Brand Name: BNEE
Model Number: ZQ ZF
MOQ: 1
Price: 10$-60$
Payment Terms: T/T
Supply Ability: 200 metres per day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE IS09001
Material:
Steel Nylon
Inner Height:
07mm-80mm
Inner Width:
07mm-300mm
Outer Height:
10mm-119mm
Outer Width:
10mm-364mm
Bending Radius:
18mm-300mm
Packaging Details:
cardboard box
Highlight:

silent nylon drag chain

,

silent drag chain 10x20

,

72mm drag chain 10x20

Product Description
High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width
Product Specifications
Attribute Value
Material Steel & Nylon
Inner Height Range 07mm-80mm
Inner Width Range 07mm-300mm
Outer Height Range 10mm-119mm
Outer Width Range 10mm-364mm
Bending Radius Range 18mm-300mm
Product Overview

Cable drag chains (also known as cable carriers) are essential components in industrial machinery, providing protection and organization for cables, hoses, and tubing. These chains move in synchronization with machinery to maintain cable safety and functionality in dynamic environments.

Classification & Features
  • Material Types: Steel (heavy-duty applications), Plastic (lightweight/corrosion-resistant), Nylon (flexible/wear-resistant)
  • Design Options: Open design (better ventilation) or Closed design (complete environmental protection)
  • Load Capacity: Light duty (minimal loads) or Heavy duty (demanding environments)
Industrial Applications
  • Automotive manufacturing (robotic arms, assembly lines)
  • Machine tools (CNC machines, milling systems)
  • Medical equipment (imaging scanners, surgical tools)
  • Material handling systems (conveyors, automated handling)
  • Aerospace and defense (high-precision machinery)
Technical Specifications
Type Bending Radius (mm) Inner Height (mm) Inner Width (mm) Outer Height (mm) Outer Width (mm)
ZQ3250 63-300 32 51 54 72
ZQ3262 63-300 32 62 54 90

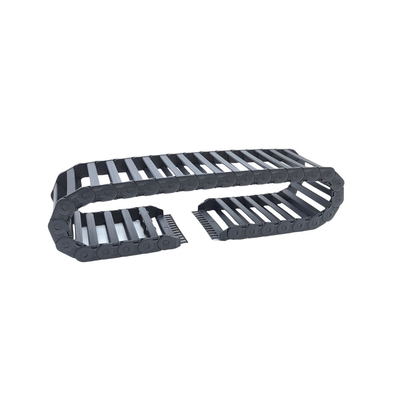

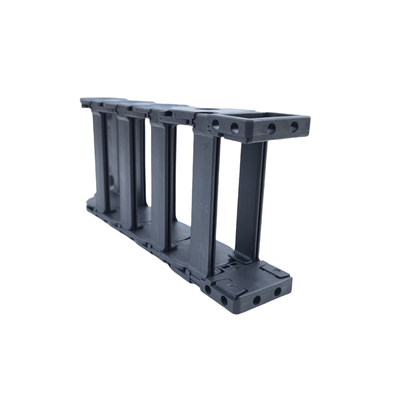

Product Images
High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width 0 High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width 1 High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width 2 High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width 3 High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width 4 High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width 5 High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width 6 High Speed Silent Nylon Drag Chain Cable ZQ3250 54mm Outer Height 72mm Outer Width 7
